Workgroup Deployment with Forefront TMG Enterprise Edition – Part 1: Preparing the Environment

Although the use of domain joined Forefront TMG servers is my preferred deployment model, I was recently involved in a Workgroup Deployment. As this is a supported deployment method, I thought it might be useful to document some of the specifics of installing and configuring in a workgroup environment, specifically when using Enterprise Edition with a standalone array.

When using a workgroup deployment, it is likely that infrastructure services are limited and an Enterprise Management Server (EMS) will not be present. Therefore a standalone array, as opposed to an EMS-managed array, will be required to provide an array of Forefront TMG servers. Therefore for the purposes of this article (and just because I think it is interesting) the example provided includes setup of a standalone array to provide a high availability Forefront TMG solution.

To improve the quality of information provided and also to reduce the amount of time it takes to produce these blog articles, I am trying out a new technology in this blog post. This technology is called the Windows Problem Steps Recorder and was originally written as a support tool. However, it also provides a really nice way of capturing a complete walkthrough process in a relatively accurate and fast way. PLEASE provide feedback on this new method of providing walkthrough information – does it work for you? I appreciate the MHT file download size is quite large, but it does allow for offline use which is quite a nice bonus!

Anyhow, back to the article. In order to prepare the environment for workgroup deployment we need to consider the following preparatory steps:

  • Configure each Forefront TMG server with a fully qualified domain name (FQDN)
  • Create user accounts
  • Import server certificates
  • Import root CA certificates

Lab Environment Overview

The example lab environment I am using consists of the following Forefront TMG Servers:

  • TMG03
  • TMG04

Both servers have been configured with three network interfaces (more on that later) and are running Forefront TMG Enterprise Edition on Windows Server 2008 R2 operating systems. The servers are actually hosted on a Windows Server 2008 R2 Hyper-V parent, not that this makes any difference to the examples.

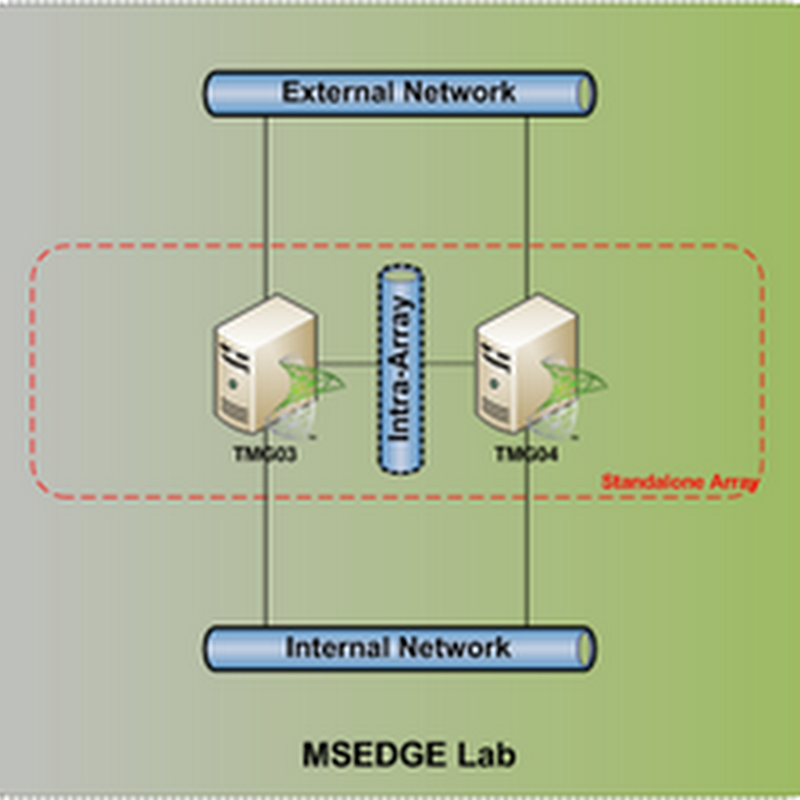

An overview of the Forefront TMG related lab environment is shown below:



Configure FQDNs

As the Forefront TMG servers are not domain joined, they are unlikely to be configured with a DNS suffix. Hence they will have a simple hostname as opposed to a fully qualified domain name (FQDN). So, the first step is to configure each server with an appropriate DNS suffix to define the FQDN.

First for TMG03:

Next for TMG04:


Create User Accounts

The next step involves creating mirror user accounts on each Forefront TMG server.

First for TMG03:

Next for TMG04:


Import Server Certificates

Firstly we import a unique Workgroup Server Certificate into TMG03. In my lab, this certificate was created using an internal Windows CA using the Web Server certificate template. An overview of this process is provided here. However, any CA than can create a valid certificate with a Server Authentication (1.3.6.1.5.5.7.3.1) key usage type (sometimes call an OID) should be fine.

For TMG03 only:


Import CA Server Certificates

To ensure that the imported server certificate is trusted by both TMG03 and TMG04, we need import the CA server certificate into the Trusted Roots Certificate Authority certificates store on both servers. For our example lab environment, this is called MSEDGE Root CA.

First for TMG03:

Next for TMG04:


For next time…

With the environment prepared, we can now think about creating the standalone array and joining workgroup array members.

Please Note: If you want to download all walkthroughs provided above in a single file you can use the Download as .zip link from here. However, be aware that this is a 14MB download!

See you next time…
