Forefront TMG/UAG: Useful Tools and Scripts

I spend a fair bit of time deploying both Forefront TMG and Forefront UAG for customers and therefore have defined a pretty good build checklist that I follow for every deployment. This makes implementations easier to support as we have a standard build and standard toolset available for every customer. As part of these deployments, I install some core tools and also run several scripts to provide a solid foundation for both products.

I thought it may be useful to share my experience and provide the community with some advice for more polished and supportable TMG/UAG deployments.


Please Note: As Forefront UAG includes an instance of Forefront TMG, it is recommended to install all tools, but only run the scripts defined in the ‘Scripts: General’ section on UAG servers.

Tools

In terms of tools, my standard build would normally include the following tools:

Forefront TMG Best Practice Analyser which can be downloaded here.

This tool should be pretty self-explanatory and should be installed on every Forefront TMG server to look for common problems and configuration errors. Run this tool at least once when you have completed your Forefront TMG installation and configuration.

Forefront UAG Best Practice Analyser which can be downloaded here.

This tool should be pretty self-explanatory and should be installed on every Forefront UAG server to look for common problems and configuration errors. Run this tool at least once when you have completed your Forefront UAG installation and configuration.

Network Monitor which can be downloaded here.

This tool should be pretty self-explanatory and should be installed on every Forefront TMG/UAG server to aid troubleshooting when the time comes. Network Monitor is also a prerequisite for using the Data Packager element of the Forefront TMG Best Practice Analyser.

Please Note: Additional Forefront TMG tools can also be downloaded from here, but I don’t tend to install all of these by default.

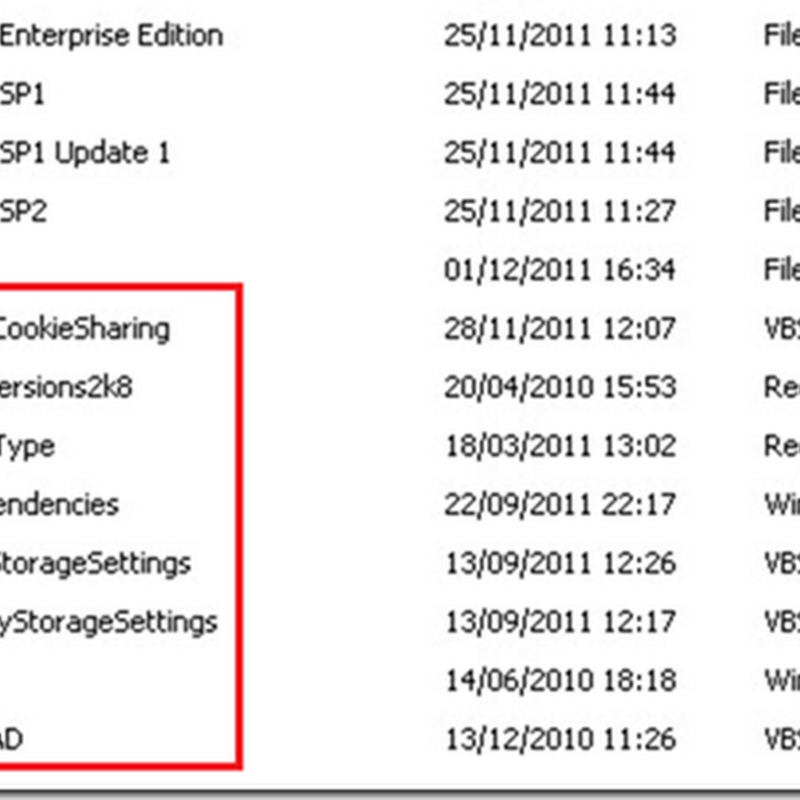

Scripts: General (Applicable to TMG and/or UAG)

In terms of general scripts, my standard build would normally include:

SetNetBTNodeType.reg which can be downloaded here.

This script is used to prevent NetBIOS broadcast traffic (and thereby dramatically
improve TMG performance) by configuring Windows as a peer-node host using the NetBT NodeType registry value. Props for this particular registry setting goes to the Microsoft Forefront TMG Administrators Companion book, which is highly recommended! Winking smile

SetServiceDependencies.bat which can be downloaded here.

Since Forefront TMG Service Pack 1 and above, I have had numerous occasions where Forefront TMG server takes a long time to reboot. These problems are well documented on various forums and blogs and I am still unsure if the issue has been fully fixed, even in the latest service pack level. To combat these problems, we which lies with the failure to start the Microsoft Forefront TMG Control service (isactrl) within a timely fashion, it is possible to change/reset the dependencies of the Forefront TMG Control service, thereby eliminating the problem.

An example blog post detailing the problem can be found here.

RemoveWeakVersions2k8.reg which can be downloaded here.

This script is used to disable SSL version 2 which is enabled by default with Windows Server 2008/R2.

Disabling SSL v2 is a well versed security recommendation as it suffers from several cryptographic flaws and has been deprecated for several years. You can validate this change has been completed successfully using the Qualys SSL LABS: SSL Server Test available here.

Scripts: Web Proxy (N/A to UAG)

In terms of web proxy specific scripts, my standard build would normally include:

SetTemporaryStorageSettings.vbs and ShowTemporaryStorageSettings.vbs which can both be downloaded here.

Until quite recently, I was unaware that Forefront TMG Malware Inspection imposed a maximum disk space, in megabytes, that may be allocated for temporary disk storage for a single client  during malware inspection. The default maximum disk space is set at 50MB, which sometimes needs adjusting depending on the different customer environments. This script can therefore be used to set (or show) the default temporary storage limits to something more appropriate. It is a shame you cannot modify these parameters from within the Forefront TMG console, but this makes the script all the more useful and valuable.

More information (including other temporary storage limit settings) can be found here.

UseDNSforWPAD.vbs which can be downloaded here.

Based upon information provided in this blog article and personally experiencing problems with the WPAD.DAT file containing the IP address of the RAS adapter instead of the correct server primary internal IP address; I started using this script which instructs TMG to use the DNS name of array members (or server) instead of IP addresses in the WPAD script.

Please Note: With the advent of Forefront TMG SP2, using Kerberos with an NLB web proxy array is now much improved as discussed here.

Scripts: Web Publishing (N/A to UAG)

In terms of web publishing specific scripts, my standard build would normally include:

EnableSP2FBACookieSharing.vbs which can be downloaded here.

By default, a Forefront TMG forms-based authentication cookie is only valid on the array member that generated the cookie. If a client request that contains an authentication cookie from one array member is sent to a different array member, the client is asked to re-authenticate. This behaviour may occur when a node is taken offline. Or, this behaviour may occur if the client source IP changes between requests that affect which array member handles the incoming request.

Forefront TMG Service Pack 2 added functionality to support cookie sharing across array members. To do this, SP2 enables support for the cookie encryption keys to be shared across array members.

Please Note: To support sharing cookie encryption keys, the array members must be domain-joined. Be aware that this script does not work for workgroup-based array members.

As this is a pretty significant change in functionality, for the better, I now run this script by default when deploying standalone or EMS-managed arrays where array members meet the domain joined prerequisite.

More information on this new SP2 feature is available here.

Other Important Build Configuration

I wasn’t planning on talking about standard build configuration as this blog post was meant to be dedicated to tools and scripts, but I think they are actually hugely relevant when deploying TMG/UAG server. Hence I have included two key baseline configuration tasks for any TMG/UAG implementation

In addition to installing the above tools and scripts, it is also vital to configure TMG and UAG server network adapter settings and bind order appropriately. More information on this particular aspect is provided in the following TechNet Wiki articles:

Recommended Network Adapter Configuration for Forefront TMG Standard Edition Servers

Recommended Network Adapter Configuration for Forefront TMG Enterprise Edition Servers

Recommended Network Adapter Configuration for Forefront UAG Servers

And finally, make sure you have applied the latest updates and service packs for TMG and/or UAG; at the time of writing, this is Forefront TMG Service Pack 2 (build version 7.0.9193.500) and Forefront UAG Service Pack 1 Update 1 (build version 4.0.1773.10100).

I hope you find these tools and scripts useful and have learned something new to improve your own TMG/UAG deployments. If you have other tool and scripts recommendations, please drop me a comment below and I will endeavour to add these to the list.

7 comments:

  1. Great article!
    Thank you.
    Luca

    ReplyDelete
  2. Hi JJ,

    thx for all the TMG/UAG-Info. If i google for any issue on TMG/UAG i click the links with the words "Jason" or "msedge.org.uk" first ! But to get a "standard build blog entry from you" ... Just Great !!

    A little bit "off-topic" .... but one thing i´ve been wondering if someone like you can answer:

    When serving a Custom-WPAD via TMG - Is there any URL where u can get the original (dynamically from the config created WPAD) since the original WPAD-URL wpad.dat is "blocked" by the custom-one ?

    thx in advance
    cheers,
    Robert

    ReplyDelete
  3. Thanks for the great feedback!

    I don't believe it is possible to run both the custom and native WPAD.dat files from TMG at the same time. You have to choose which you want to use system wide...

    Cheers

    JJ

    ReplyDelete
  4. Great stuff Jason...
    Are you suggesting keeping TMG patched and updated separately on a UAG server? Or should we only patch it when UAG includes an update for TMG with its patches? My concern would be that the TMG patch doesn't know UAG is there and not play nice with it.

    Thanks, Jon

    ReplyDelete
    Replies
    1. Hi Jon,

      Yes, it should be patched individually. MS are aware that many customers are running TMG as part of a UAG platform and therefore test against this scenario.

      I have not come across a TMG patch that has affected UAG in a detrimental way. Quite often, as UAG relies on some features sets of TMG, updating TMG is actually required to fix a perceived "UAG problem".

      Cheers

      JJ
